Model NO.
YL Series Double-Capacitor Single-Phase Asynchronous Motor
Price:
US $ 150.00-500.00
Delivery:
EXW
Minimum order quantity:
100
Supply Ability:
1000PCS / Day
Country of Origin:
Taizhou, Zhejiang province, China
Stock Time:
15 Days
Quantity:

Company Introduction

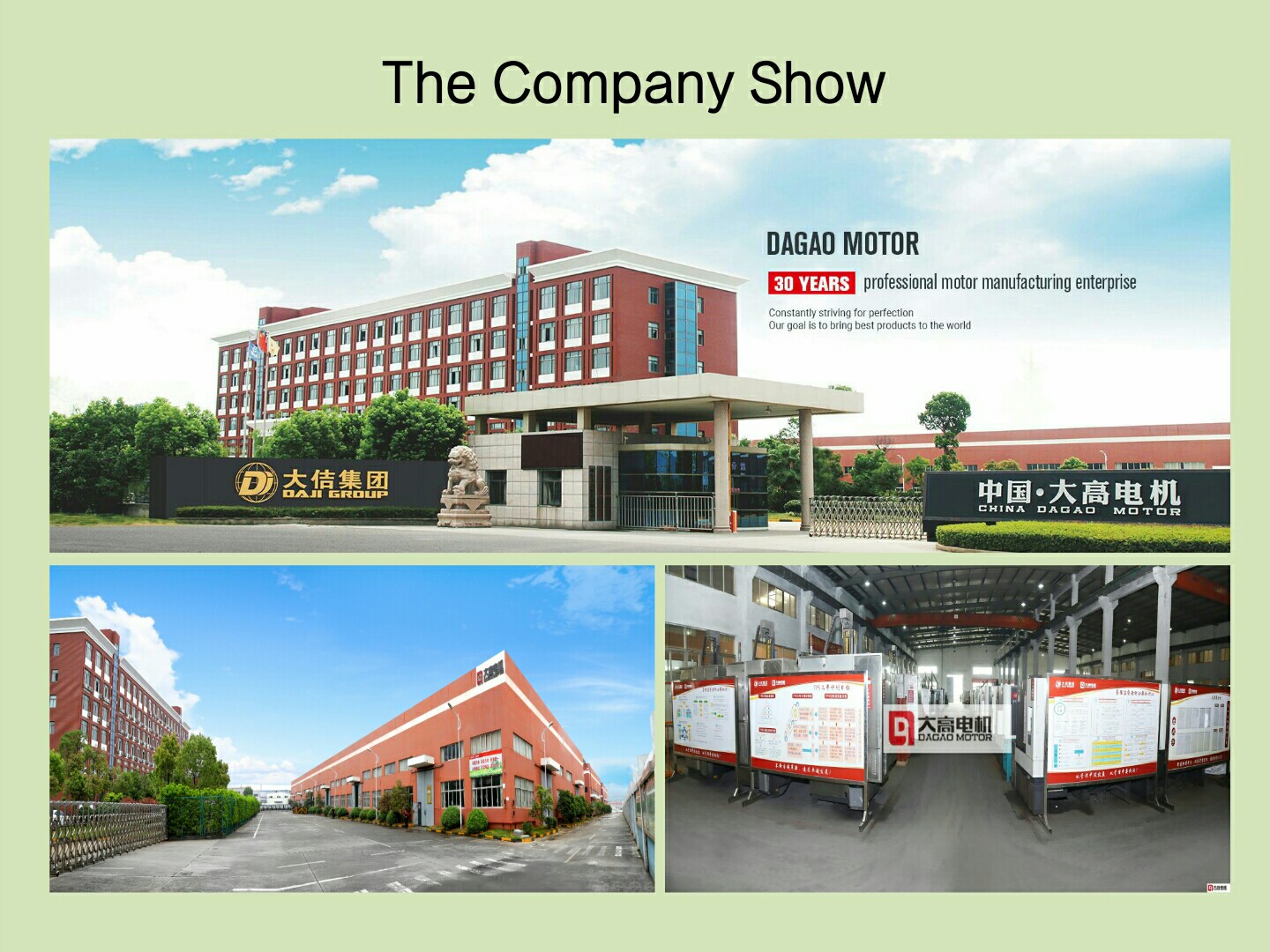

DAJI GROUP. ZHEJIANG DAGAO ELECTRIC MOTOR Co., Ltd, is professional enaged in electric motor manufacturing for 30 years since 1988. The headquarters is located in Shanghai city, group with 4 manufacturing bases in zhejiang and Shanghai, has more than 300 national sales centers and special agencies, and exported to more than 50 countries and regions.


Factory Advantages

1. 30 years history
2. Competitive price
3. Guaranteed quality
4. Fast delivery time: normal models about 15-20 days , unusual models about 30 days
5. 100% testing after every process, 100% raw materials are selective
6. High efficiency
7. Low noise
8. Long life
9. Power saving
10. Slight vibration
11. It is newly designed in conformity with the relevant rules of IEC standards
12. Professional Service
13. Warranty: 12 months from date of delivery
14. Main Market: South America, Europe, Middle East, Southest Asia, Africa and so on
15. We have certificates for CE, CCC, ISO9001, SGS and so on




Product Introduction

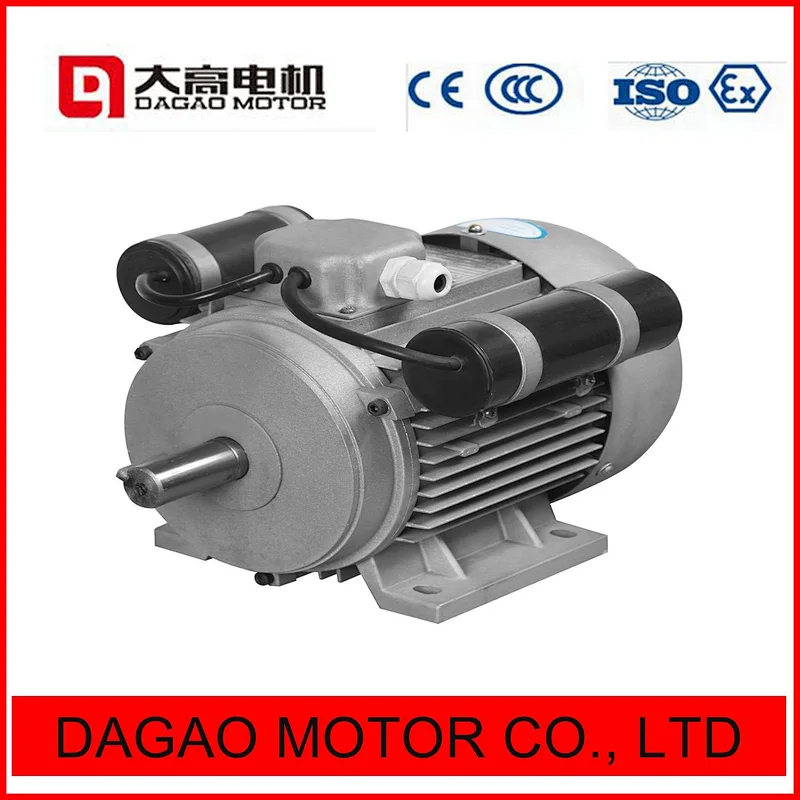

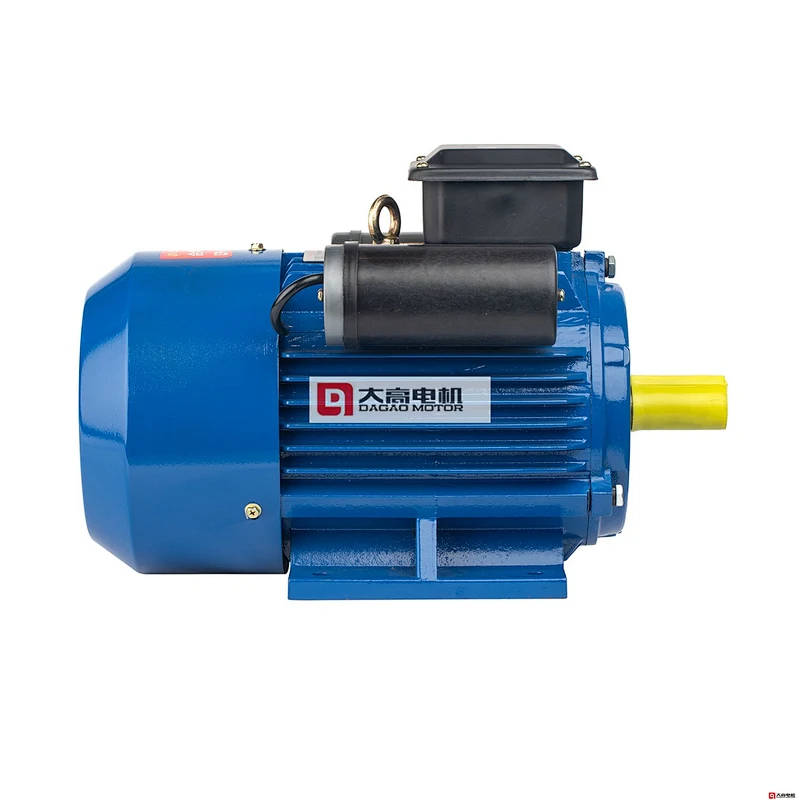

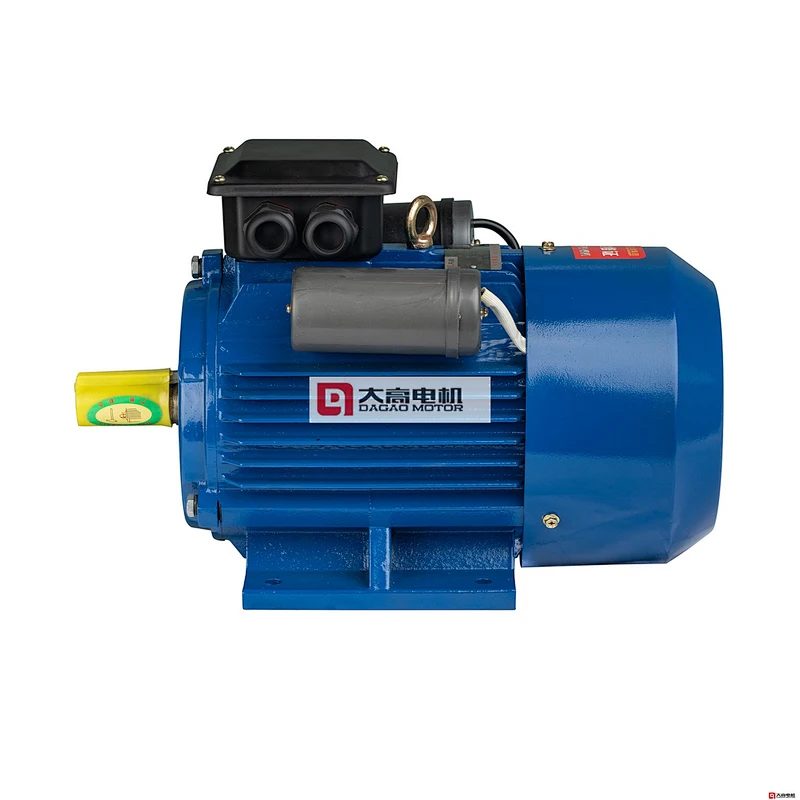

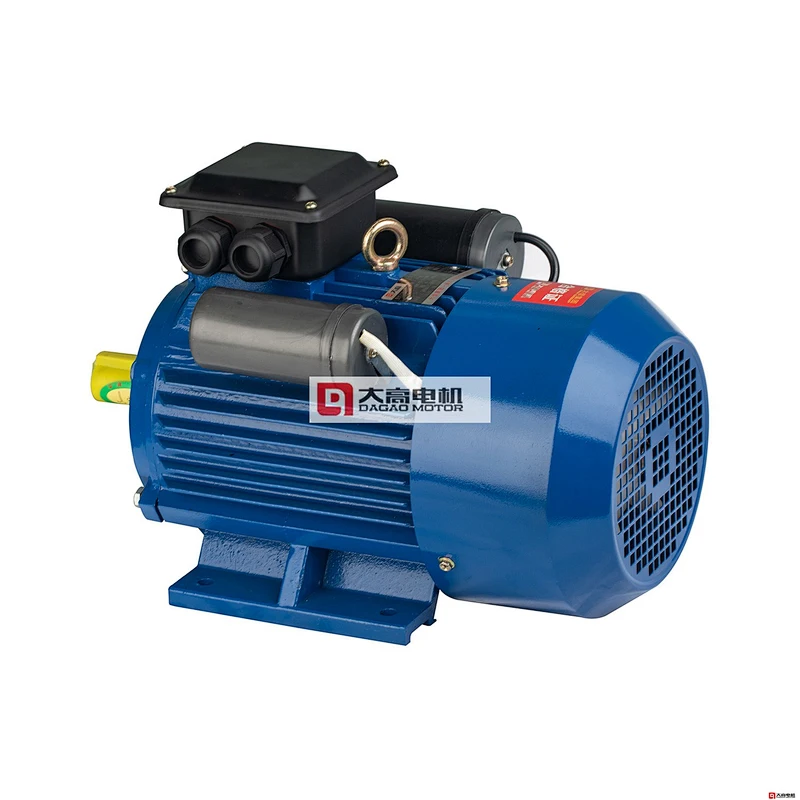

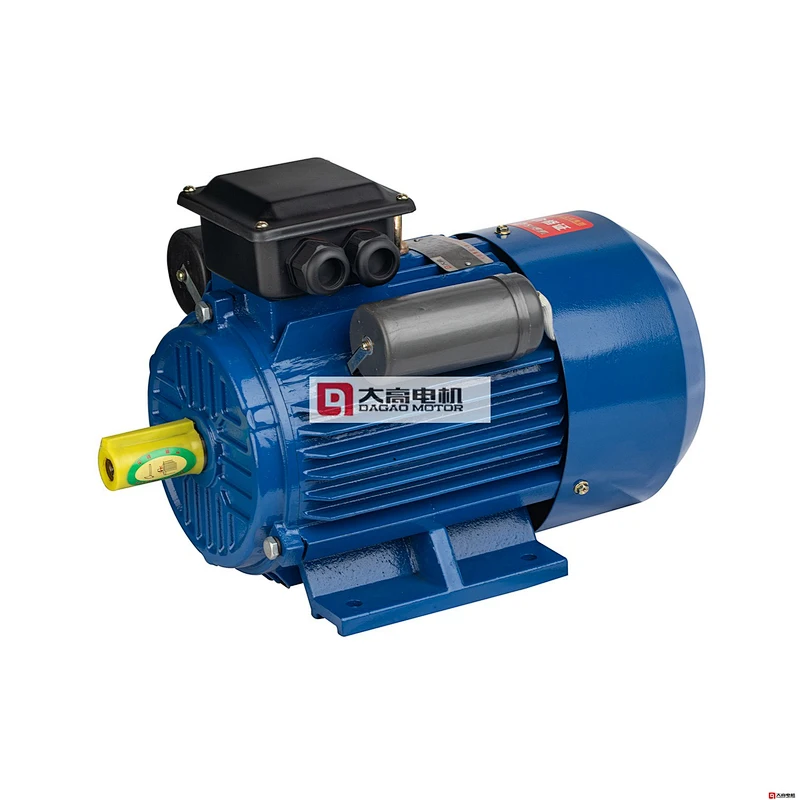

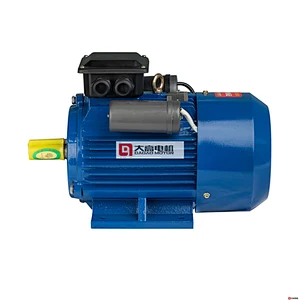

YL series double-capacitor single-phase asynchronous motor is designed and manufactured according to national standard JB/T 9542. It has the characteristics of excellent starting and running performance, low noise, slight vibration, compact structure, light weight and easy maintenance.
It is widely used in air compressor, water pump, family workshop and other mechanical equipment as power.


YL Series Double-Capacitor Single-Phase Asynchronous Motor
1). Frame:71 - 112 mm
2). Power:0.25 - 3.7 kW
3). Voltage:220 V, or Customized
4). Frequency:50 Hz
5). Shell:cast iron body, aluminum body
6). Pole:2, 4
7). Protection degree:IP44
8). Insulation class:B
9). Cooling method:IC411
10). Duty Type:S1
11).Certificates:CE, CCC, ISO9001, SGS and so on

Working Condition: ambient temperature is -15oC to 40oC, and below 1000 meters above sea level

Technical Data

TypePower (kW)Current (A)Speed (r/min)Efficiency (%)Power FactorTst/TnIst/InTmax/Tn
YL71120.372.732800670.921.81.71.0
YL71220.553.882800700.921.8
YL80120.755.152800720.921.8
YL80221.106.852800750.951.8
YL90S-21.509.442800760.951.8
YL90L-22.2013.672800770.951.7
YL100L1-23.0018.22900790.951.7
YL112M-23.7021.92900810.951.7
YL71140.252.031400620.921.8
YL71240.372.811400650.921.8
YL80140.553.881400680.921.8
YL80240.755.221400710.921.8
YL90S-41.107.211400730.951.7
YL90L-41.509.571400750.951.7
YL100L1-42.2013.91400760.951.7
YL100L2-43.0018.61400770.951.7
YL112M-43.7022.41400790.951.7



FAQ:

Q: What is your delivery time?
A: Within 20-25 days after receiving deposit.

Q: Do you offer OEM service?
A: Yes. We accept OEM service.

Q: What is your MOQ of this item ?
A: 10 PCS per item.

Q: Can we type our brand on it?
A: Yes, of course.

Q: Where is your loading port ?
A: Ningbo Port, Shanghai Port, China.

Q: What is your production capacity?
A: About 1000 PCS per day.




Ordering Instructions

1. Please indicate the fram size, power, synchronous speed, voltage, frequency, install measurements, inlet cable entrance type and direction of rotation etc.
2. If have special request, such as the voltage, frequency, protection degree, duplex shaft, direction of rotation, temperature monitoring device, install measurements, bearing oil discharge device and so on, please indicate in details in the ordering contract and sign technical agreement if necessary.
3. When ordering other series of motor and derived motor in the sample, please follow this instruction without further notice, thank you for your cooperation!
