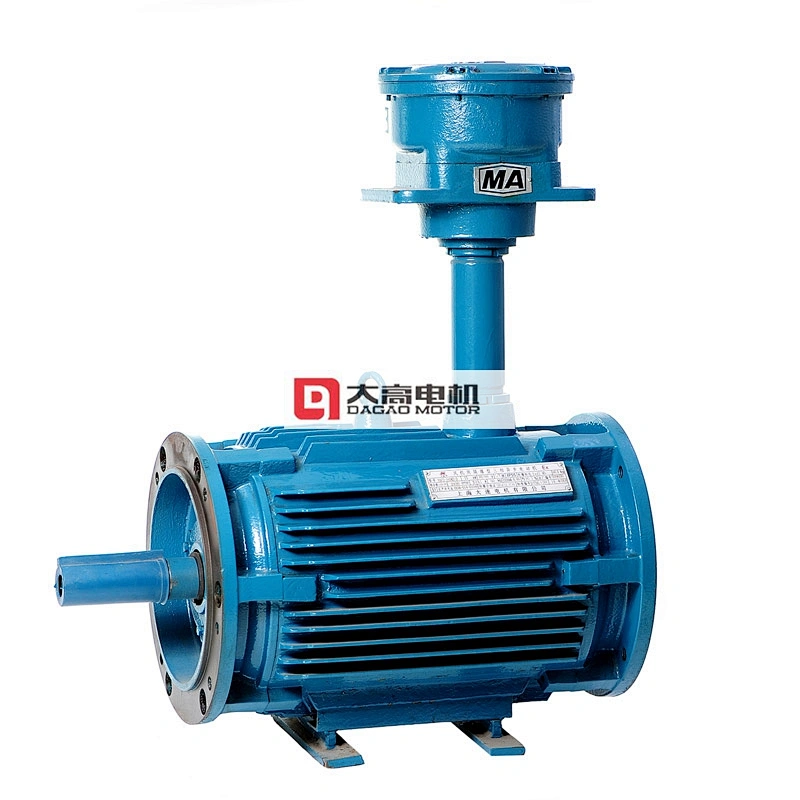

YBF3 Series Explosion-Proof Three-Phase Asynchronous Motor Usage for Draught Fan
YBF3 Series Explosion-Proof Three-Phase Asynchronous Motor Usage for Draught Fan
YBF3 Series Explosion-Proof Three-Phase Asynchronous Motor Usage for Draught Fan
YBF3 Series Explosion-Proof Three-Phase Asynchronous Motor Usage for Draught Fan
YBF3 Series Explosion-Proof Three-Phase Asynchronous Motor Usage for Draught Fan
YBF3 Series Explosion-Proof Three-Phase Asynchronous Motor Usage for Draught Fan
YBF3 Series Explosion-Proof Three-Phase Asynchronous Motor Usage for Draught Fan

YBF3 Series Explosion-Proof Three-Phase Asynchronous Motor Usage for Draught Fan

Model NO.
YBF3 Series Explosion-Proof Three-Phase Asynchronous Motor Usage for Draught Fan
Price:
US $ 150.00-500.00
Delivery:
EXW
Minimum order quantity:
100
Supply Ability:
1000pcs / Day
Country of Origin:
Taizhou, Zhejiang province, China
Stock Time:
15 Days
Quantity:

Company Introduction

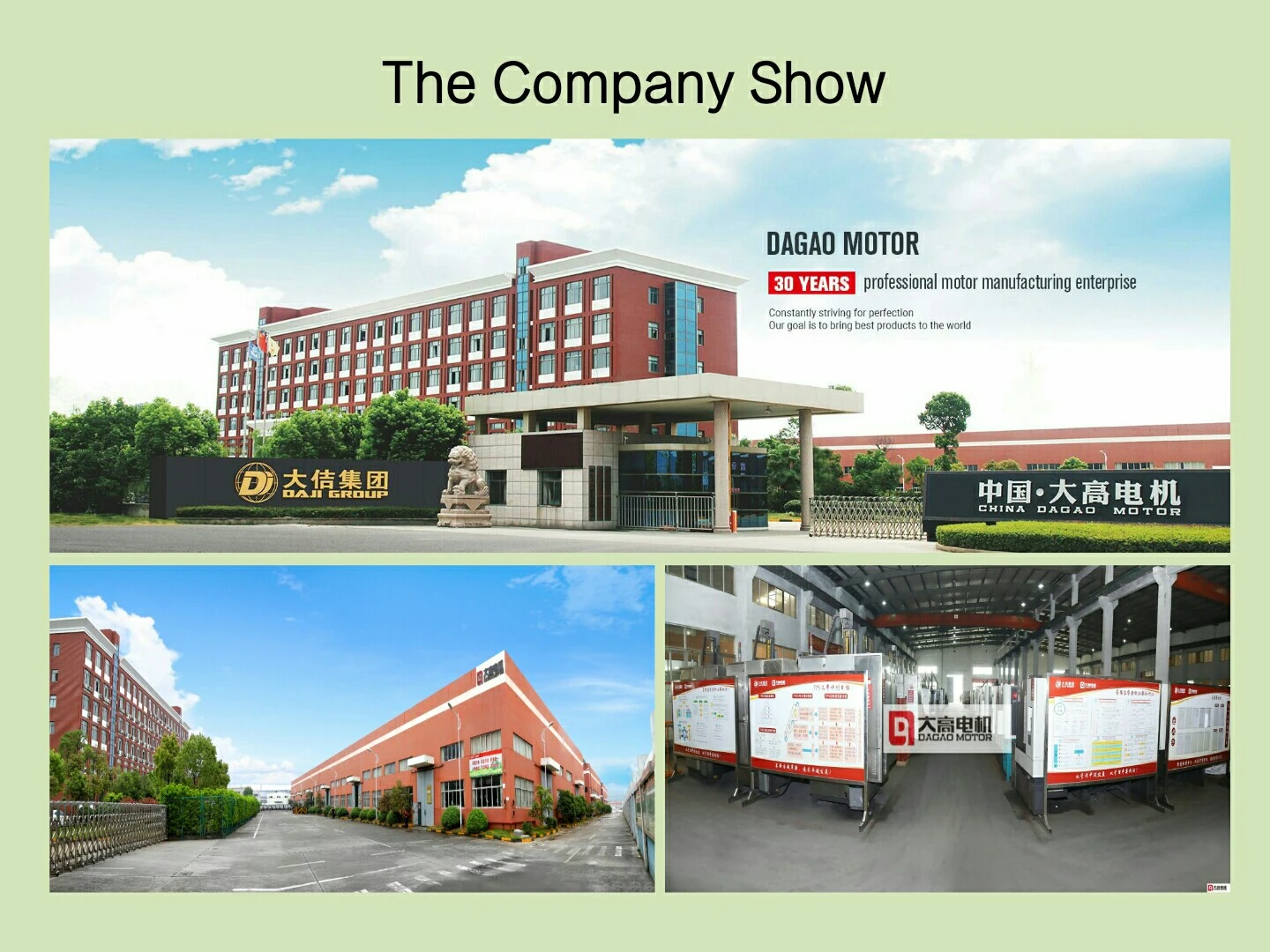

DAJI GROUP. ZHEJIANG DAGAO ELECTRIC MOTOR Co., Ltd, is professional enaged in electric motor manufacturing for 30 years since 1988. The headquarters is located in Shanghai city, group with 4 manufacturing bases in zhejiang and Shanghai, has more than 300 national sales centers and special agencies, and exported to more than 50 countries and regions.


Factory Advantages

1. 30 years history
2. Competitive price
3. Guaranteed quality
4. Fast delivery time: normal models about 15-20 days , unusual models about 30 days

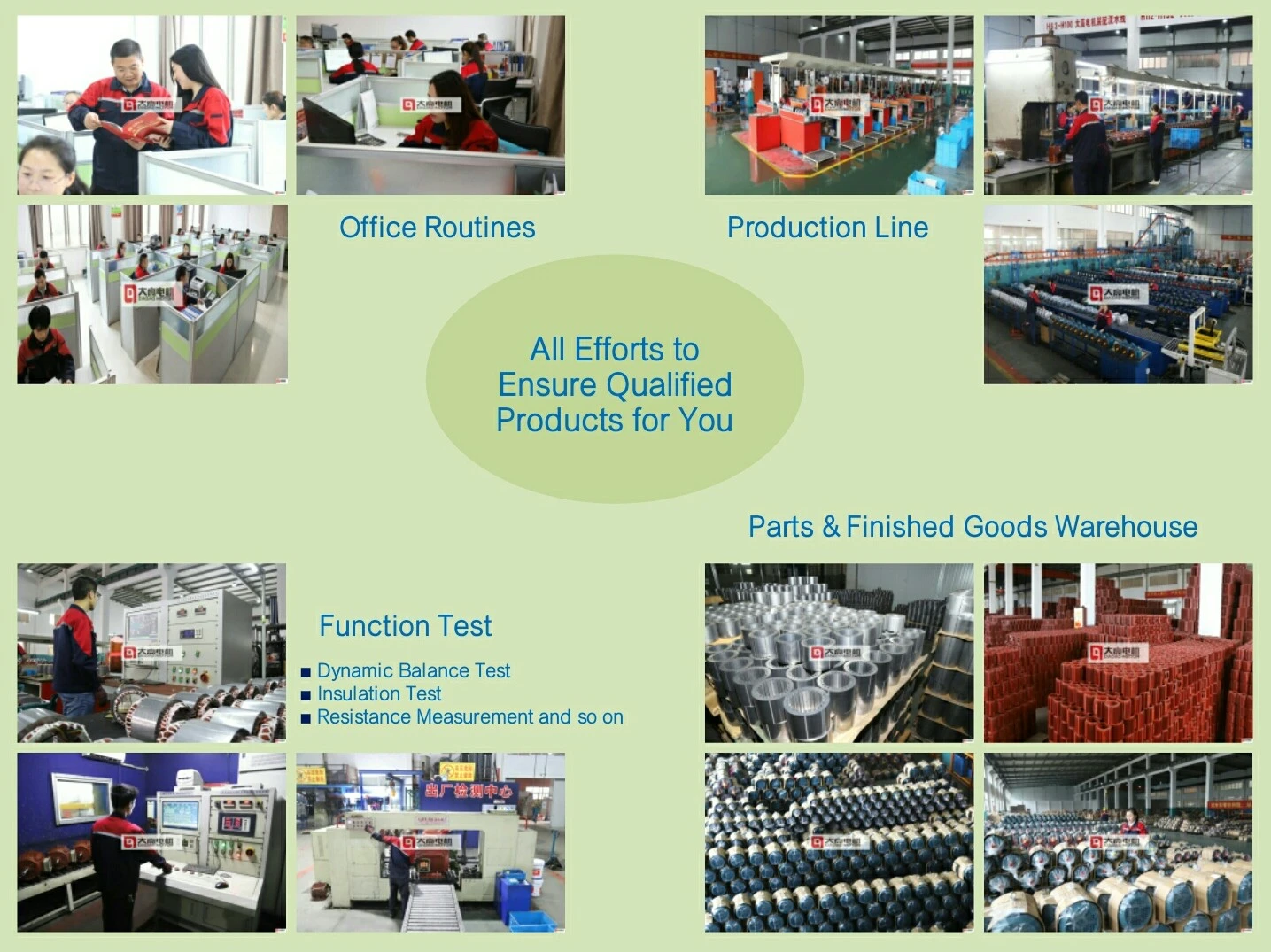

5. 100% testing after every process, 100% raw materials are selective
6. High efficiency
7. Low noise
8. Long life
9. Power saving
10. Slight vibration
11. It is newly designed in conformity with the relevant rules of IEC standards
12. Professional Service
13. Warranty: 12 months from date of delivery
14. Main Market: South America, Europe, Middle East, Southest Asia, Africa and so on
15. We have certificates for CE, CCC, ISO9001, SGS and so on




Product Introduction

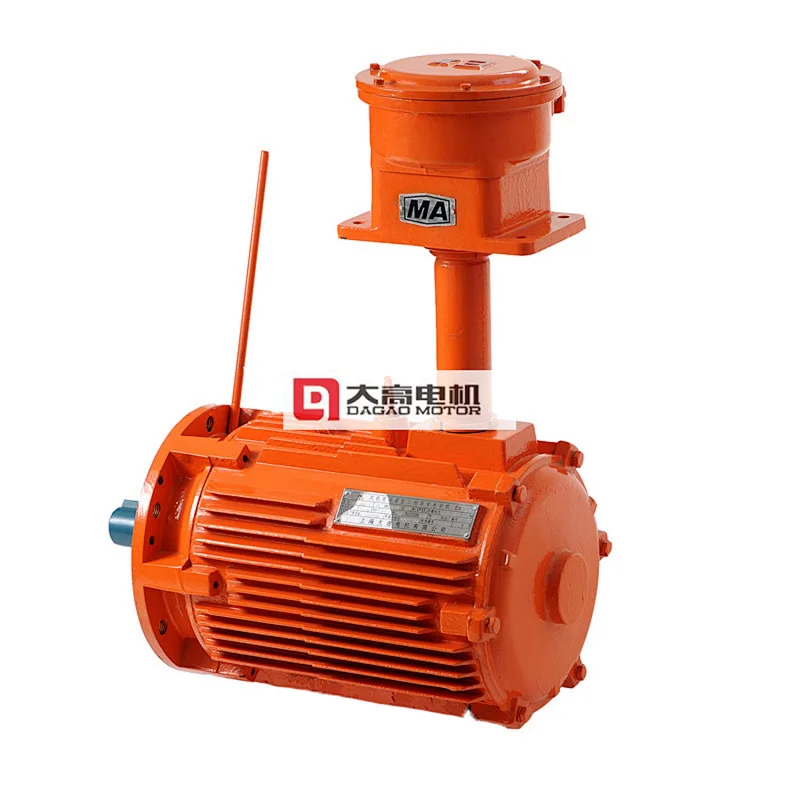

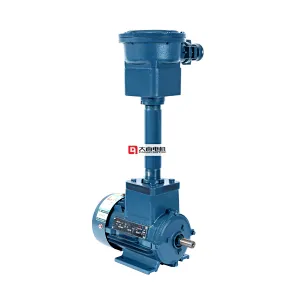

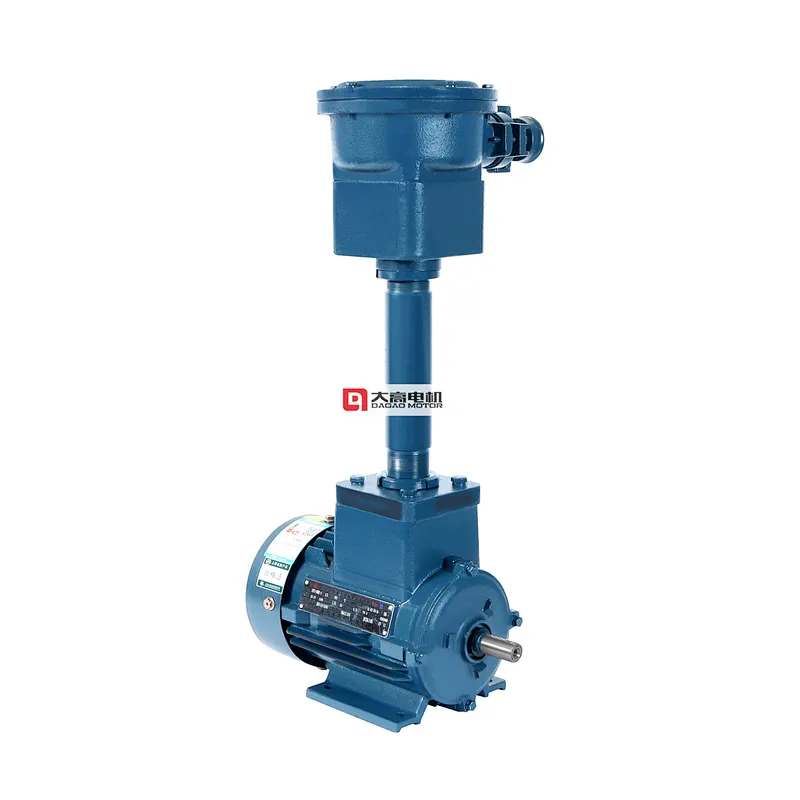

YBF3 series explosion-proof motor is specially designed and manufactured by our company for supporting explosion-proof axial fans, and is suitable for underground coal mines and factories. Its power grade, installation size in line with the International Electrotechnical Commission (IEC) standards, explosion-proof. The classification and temperature grouping of common explosive gas mixtures are the same as YB3 series flameproof three-phase asynchronous motor.
The motor with center height of 160 and above for local fan and the center height of 250 and above for main fan is equipped with oil injection and drainage devices. The position of the bearing temperature measuring element is reserved for the center height of the motor for the main fan of 250 and above. The length of the lead pipe of the cable connection device for the fan use can be customized according to the user's requirements.

YBF3 Series Explosion-Proof Three-Phase Asynchronous Motor Usage For Draught Fan
1). Frame:63 - 355 mm
2). Power:0.12 - 315 kW
3). Voltage:380V, 400V, 415V, 460V, 660V, 1140V, 380V/660V, 660V/1140V
4). Frequency:50 Hz
5). Shell:cast iron body, aluminum body
6). Pole:2, 4, 6, 8, 10
7). Protection degree:IP55
8). Insulation class:F
9). Cooling method:IC411
10). Duty Type:S1
11). Mounting arrangement:B3, B5, B30, B35
12).Certificates:CE, CCC, ISO9001, SGS and so on

Working Condition: ambient temperature is -15oC to 35oC (mine) or 40oC (factory), and below 1000 meters above sea level

Terminal Box Structure:
The moter terminal box has excellent explosion-proof structure performance and high protection grade, and has a large cavity for wiring. The incoming line is divided into two kinds of structure: rubber sheath cable and steel pipe wiring. It can be made one inlet entrance or two inlet entrance respectively in accordance with the requirements of different starting type

FrameNumber of EntranceThe Max Outer Diameter of Inlet CableThread of Conduit Entry
63~71oneΦ25M30*2
80~100oneΦ25M30*2
112~132
160~180oneΦ35M36*2
200~225oneΦ42M48*2
250~280oneΦ50M64*2
250~280twoΦ42M48*2
315~355twoΦ50M64*2
315~355oneΦ64M72*2



FAQ:

Q: What is your delivery time?
A: Within 20-25 days after receiving deposit.

Q: Do you offer OEM service?
A: Yes. We accept OEM service.

Q: What is your MOQ of this item ?
A: 10 PCS per item.

Q: Can we type our brand on it?
A: Yes, of course.

Q: Where is your loading port ?
A: Ningbo Port, Shanghai Port, China.

Q: What is your production capacity?
A: About 1000 PCS per day.




Ordering Instructions

1. Please indicate the fram size, power, synchronous speed, voltage, frequency, install measurements, inlet cable entrance type and direction of rotation etc.
2. If have special request, such as the voltage, frequency, protection degree, duplex shaft, direction of rotation, temperature monitoring device, install measurements, bearing oil discharge device and so on, please indicate in details in the ordering contract and sign technical agreement if necessary.
3. When ordering other series of motor and derived motor in the sample, please follow this instruction without further notice, thank you for your cooperation!
