Company Introduction

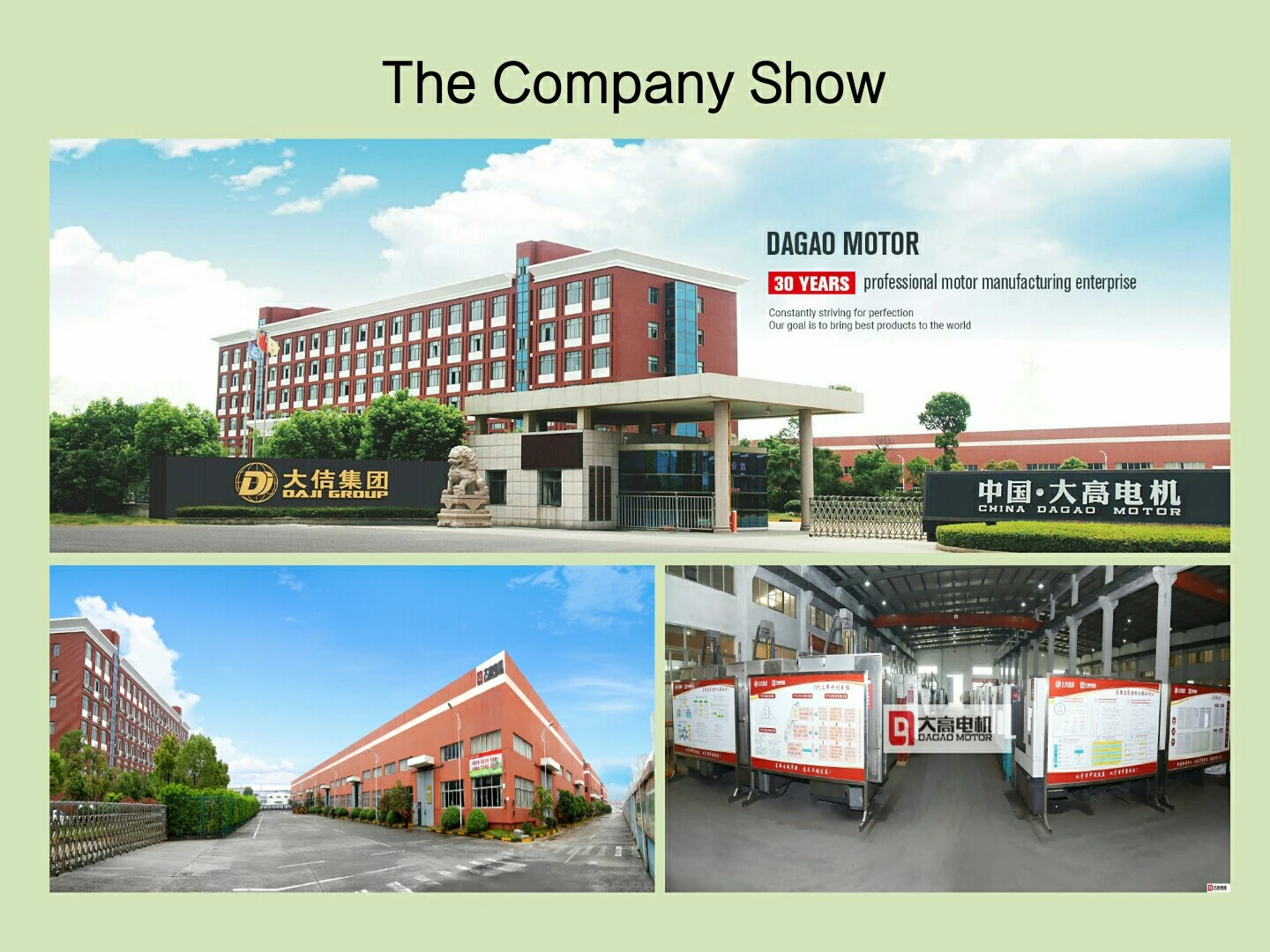

DAJI GROUP. ZHEJIANG DAGAO ELECTRIC MOTOR Co., Ltd, is professional enaged in electric motor manufacturing for 30 years since 1988. The headquarters is located in Shanghai city, group with 4 manufacturing bases in zhejiang and Shanghai, has more than 300 national sales centers and special agencies, and exported to more than 50 countries and regions.
Factory Advantages
1. 30 years history
2. Competitive price
3. Guaranteed quality
4. Fast delivery time: normal models about 15-20 days , unusual models about 30 days

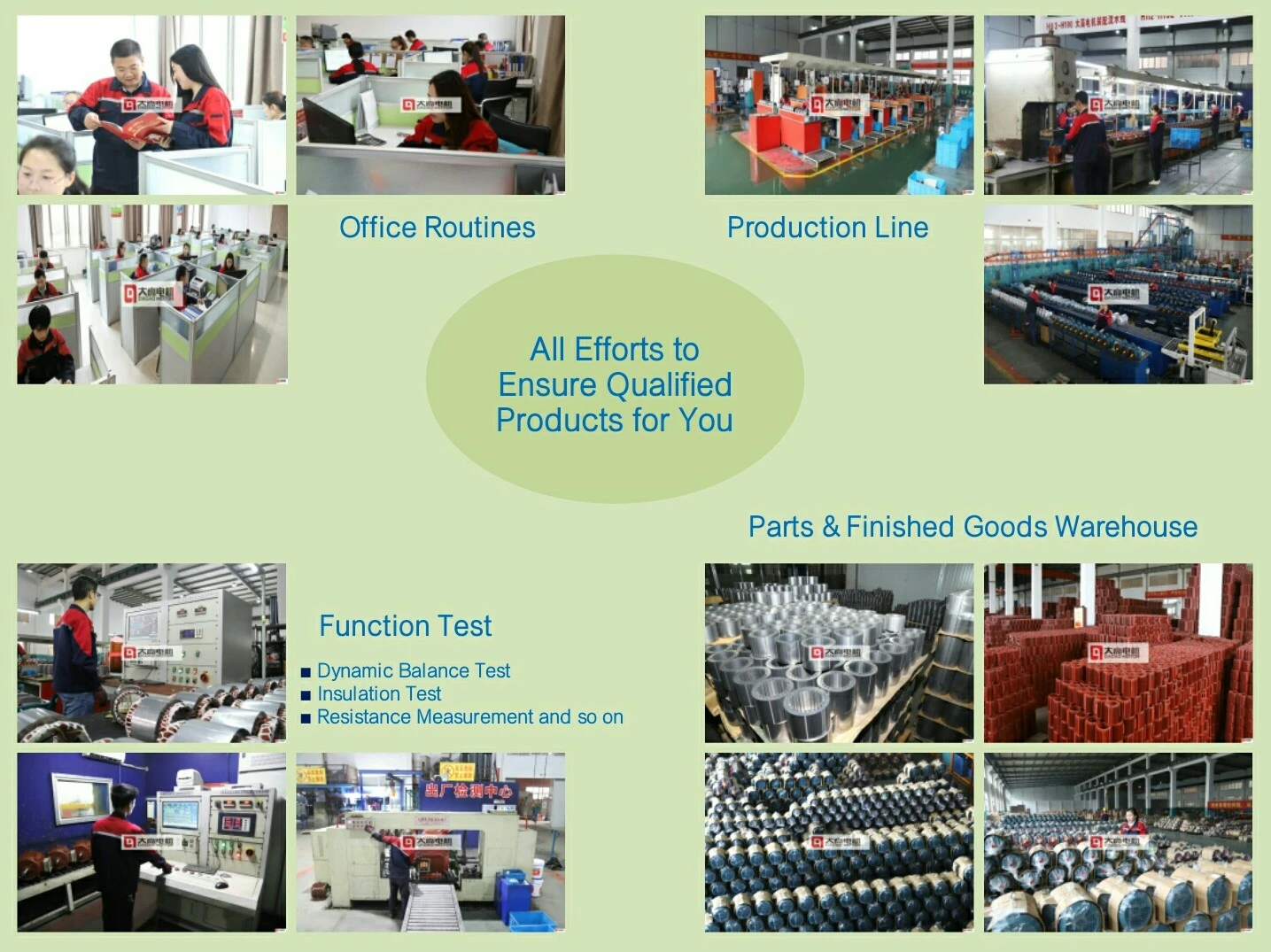

5. 100% testing after every process, 100% raw materials are selective
6. High efficiency
7. Low noise
8. Long life
9. Power saving
10. Slight vibration
11. It is newly designed in conformity with the relevant rules of IEC standards
12. Professional Service
13. Warranty: 12 months from date of delivery
14. Main Market: South America, Europe, Middle East, Southest Asia, Africa and so on
15. We have certificates for CE, CCC, ISO9001, SGS and so on
Product Introduction

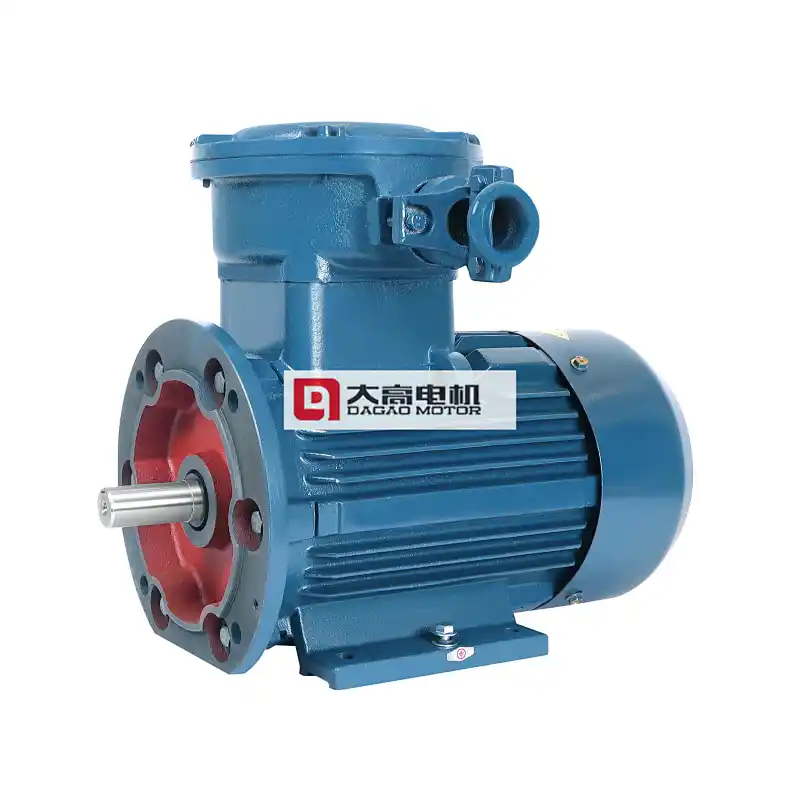

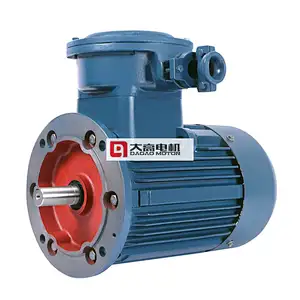

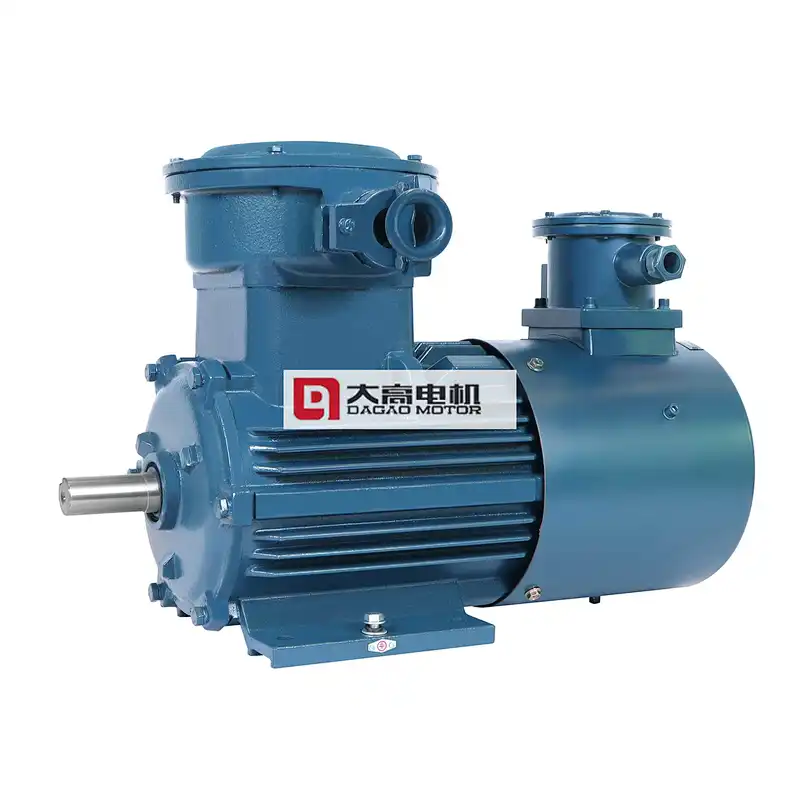

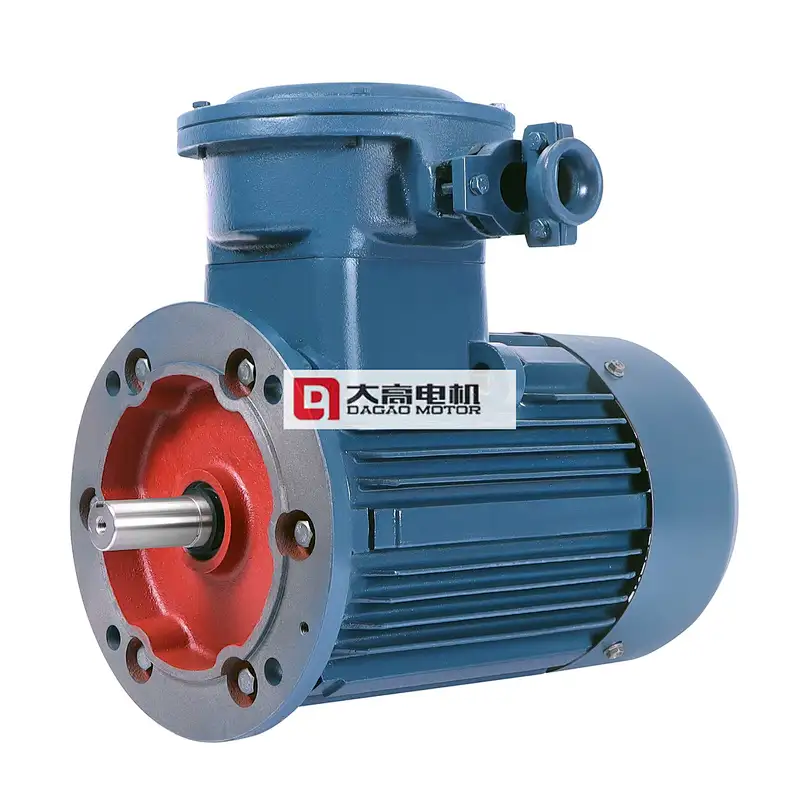

YBBP series explosion-proof variable frequency adjustable speed motor is a new product developed successfully on the basis of YB2 explosion-proof motor combined with the new technology of electromagnetic structure, process and material at home and abroad. It has the advantages of good speed regulation performance, energy saving, large temperature rise margin, long life, good performance, low noise, advanced structure, high reliability, easy to use and maintenance, etc., and can be used with all kinds of frequency conversion devices at home and abroad, contributing to energy saving and automatic control. It can realize stepless speed regulation in the range of 100~3550 rpm, with a wide speed regulation range.
It is suitable for fans, pumps, conveyor line automation equipment and mechanical machine tools in metallurgy, chemical, textile, pharmaceutical, pharmaceutical and other industries.

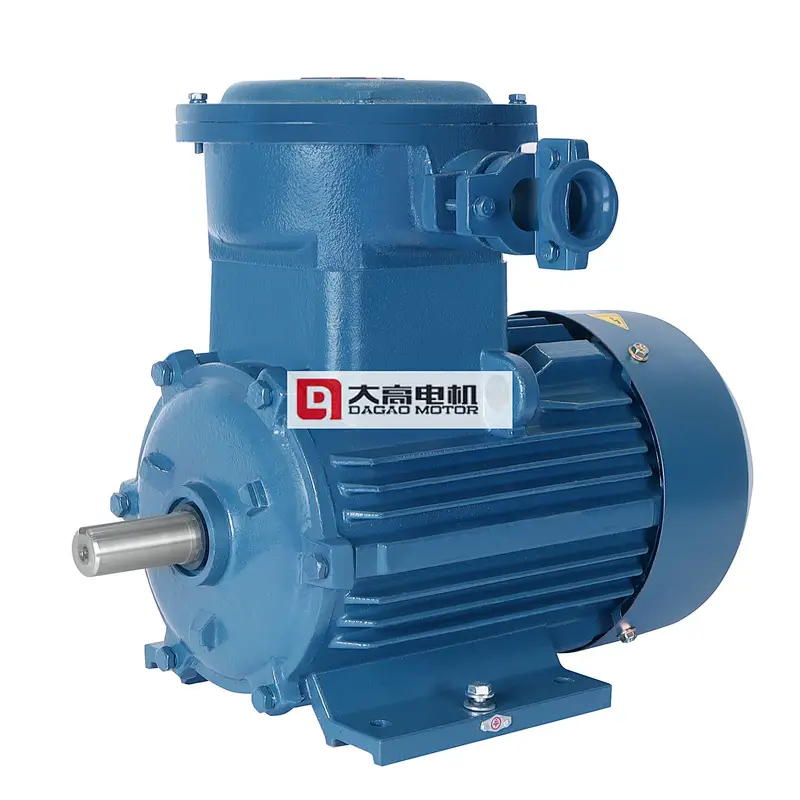

| YBBP Series Explosion-Proof Variable Frequency Adjustable Speed Three-Phase Asynchronous Motor | |
| 1). Frame: | 71 - 355 mm |
| 2). Power: | 0.18 - 315 kW |
| 3). Voltage: | 380V, 660V, 380V/660V |
| 4). Reference Frequency: | 50 Hz |
| 5). Frequency Range: | 3 - 60 (70) Hz or 3 - 100 Hz |
| 6). Shell: | cast iron body, aluminum body |
| 7). Pole: | 2, 4, 6, 8, 10 |
| 8). Protection degree: | IP55 |
| 9). Insulation class: | F |
| 10). Cooling method: | IC416 |
| 11). Duty Type: | S1 |
| 12). Mounting arrangement: | B3, B5, B35, V1 |
| 13).Certificates: | CE, CCC, ISO9001, SGS and so on |
Working Condition: ambient temperature is -15oC to 35oC (mine) or 40oC (factory), and below 1000 meters above sea level
FAQ:
Q: What is your delivery time?
A: Within 20-25 days after receiving deposit.
Q: Do you offer OEM service?
A: Yes. We accept OEM service.
Q: What is your MOQ of this item ?
A: 10 PCS per item.
Q: Can we type our brand on it?
A: Yes, of course.
Q: Where is your loading port ?
A: Ningbo Port, Shanghai Port, China.
Q: What is your production capacity?
A: About 1000 PCS per day.
Ordering Instructions
1. Please indicate the fram size, power, synchronous speed, voltage, frequency, install measurements, inlet cable entrance type and direction of rotation etc.
2. If have special request, such as the voltage, frequency, protection degree, duplex shaft, direction of rotation, temperature monitoring device, install measurements, bearing oil discharge device and so on, please indicate in details in the ordering contract and sign technical agreement if necessary.
3. When ordering other series of motor and derived motor in the sample, please follow this instruction without further notice, thank you for your cooperation!
