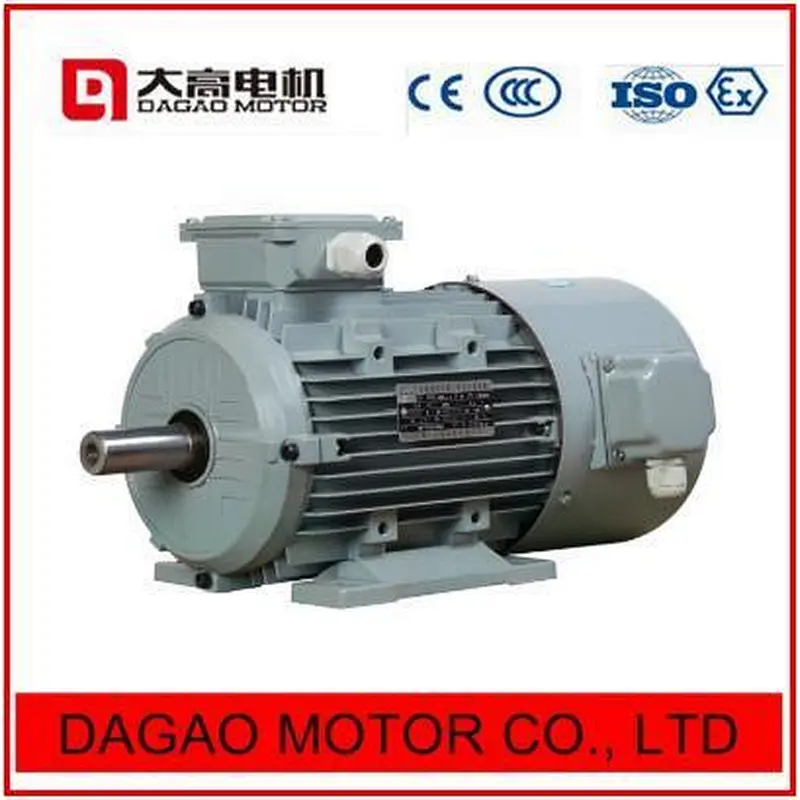

Series variable-frequencyandadiustable-speed Three Phase Asynchronous Motor
Series variable-frequencyandadiustable-speed Three Phase Asynchronous Motor
Series variable-frequencyandadiustable-speed Three Phase Asynchronous Motor
Series variable-frequencyandadiustable-speed Three Phase Asynchronous Motor
Series variable-frequencyandadiustable-speed Three Phase Asynchronous Motor
Series variable-frequencyandadiustable-speed Three Phase Asynchronous Motor
Series variable-frequencyandadiustable-speed Three Phase Asynchronous Motor
Series variable-frequencyandadiustable-speed Three Phase Asynchronous Motor
Series variable-frequencyandadiustable-speed Three Phase Asynchronous Motor
Series variable-frequencyandadiustable-speed Three Phase Asynchronous Motor
Series variable-frequencyandadiustable-speed Three Phase Asynchronous Motor

Series variable-frequencyandadiustable-speed Three Phase Asynchronous Motor

Model NO.
0.75kw/6pole YVF2-90S-6
Delivery:
FOB
Quantity:
  • Min. Order:10

Introduction:
YVF2 series motor is totally enclosed ,compulisive special used motor. By using variable-frequency motor of different poles, it can achieve stepless sped governing when the wide speed range is 100rpm-3550rpm.It is applied to the fiels of fan,pumps,pipeline automation equipments and machine tools (such as numerical control machine tool and machining center)in the industries of metallurgy,
chemical,textile,pharmacy,printing and  so on.

Operating Condition:
Centre height of frame size: 80-355mm
Power range: 0.55-315kw/0.75-420hp
Rated voltage and frequency: 380V 50HZ(special should order )
Frequency vsrisble range:3~60(75)Hz or 3~100Hz
Protection class: IP54
Insulation class: 155(F)
Duty type: S1(continuous), allows starting with full voltage
Type of cooling: IC416
Standard pole:2P 4P 6P
Power 55kw and below is star-connection; Power above 55kw is delta-connection.

Conditions of usage:
Working ambient temperature:-15~40degree centigrade.
The altitude: not above 1000m
Company Intoduction:
DAJI GROUP.ZHEJIANG DAGAO ELECTRIC MOTOR CO.,LTD, is professional enaged in electric motor manufacturing for 30 years sice 1988.The headquarters is located in Shanghai city ,group with 4manufacturing bases in Zhejiang and Shanghai ,has more than 300 national sales centers and special agencis , and exported to more than 50 countries and regions.

Factory Advantages:
1. more than 30 years history
2.Competitive price
3.Guaranted quality
4.Low noise
5.long life
6.power saving
7.100%testing after every process,100%raw materials are selective
8.Professional Service
9.Slight vibration
10.we have certificates for CE,CCC,ISO9001,SGS and so on

FAQ:
Q:What is delivery time?
A:Within 20-25 days after receiving deposit.
Q:Do you offer OEM service?
A:Yes.We accept OEM service.
Q:What is your MOQ of this item?
A:10 PCS per item.
Q:Can we type our brand on it?
A:Yes,of course.
Q:Where is your loading port?
A:Ningbo Port,Shanghai Port,China.
Q:What is your production capacity?
A:About 1000 PCS per day.

Ordering Instructions:
1.Please indicate the fram size ,power, synchronous,speed,voltage,frequency,install measurements,inlecable entrnce type and direction of rotation etc.
2.If have special request,such as the voltage,frequency,protection degree,duplex shaft,direction of rotation,temperature monitoring device,install measurements,bering oil discharge device and so on, please indicate indetials in the ordering contract and ssign technical agreement if necessary.
3.When ordering other series of motor and derived motor in the sample,please follow this instruction without further notice, thank you for your cooperation!
